One robot - two pedals:
With the Combined Pedal Robot CC800, the brake and accelerator pedals are controlled with just one robot.
This provides you with a quick to install, compact and at the same time affordable pedal robot for a variety of driving tests, especially in the field of ADAS.
The robot is installed directly in front of the driver's seat and operates the pedals via two arms that are easy to engage and disengage. Thanks to intelligent freewheel technology in both arms, the vehicle can be moved manually by a driver on the test track as usual, even with the robot installed.
Typical applications of this robot are the current EuroNCAP AEB, VRU Pedestrian and LSS Lane Keeping Tests as well as objective testing of ADAS systems.

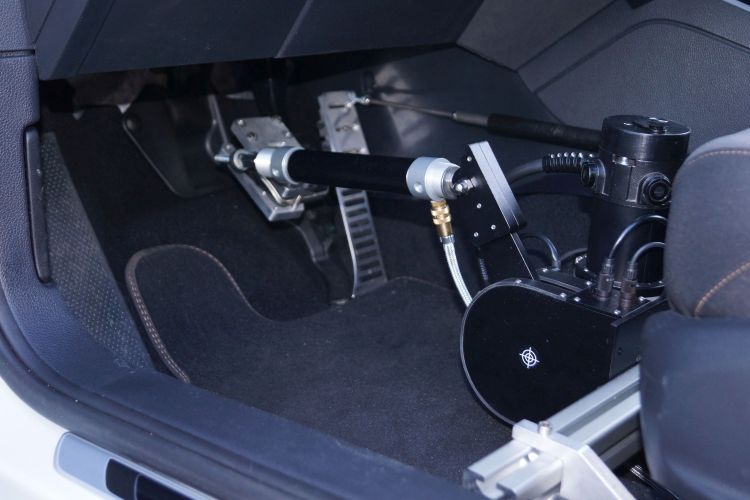

Built-in pedal robot CC800
Drive unit mounted directly in front of driver's seat
Integrated freewheel mechanism of the pedals
Operation of the pedal also possible with the robot installed
Template for CCFtap
Like numerous other standard tests, already preconfigured
Uncomplicated input of the test parameters
Tedious setting of the parameters is no longer necessary
Performance Features
The unique concept of the CC800 combined pedal robot
energetic and strong
The Combined Pedal Robot can realise a braking force of up to 800 N and a pedal speed of up to 100 cm/s.
safety by integrated freewheeling mechanism
Safety has top priority. Both pedals can be overridden even during the test run by the driver due to the integrated freewheeling system.
saving of time due to short installation time
The pedal robot can be installed within a very short time. Two different seat mounting structures are available.
advantage of directly usable control loops
Benefit of the experience of VEHICOs engineers: All control loops are directly usable - time comsuning parameter tuning which you may knwo from other suppliers is not necessary at our robots!
intuitive test configuration
VEHICO's successful, intuitive scripting language is further refined: even more movement profiles that can be pre-set with simple commands. Typical standard tests are pre-configured. Customized requests are always welcome..
variety of control modes
Vehicle velocity, distance to another moving vehicle, deceleration, position of brake and accelerator pedal, brake pedal force, hydraulic brake pressure. Switching between control modes is possible anytime during the tests.
synchronous operation with VEHICO Steering Robots
The Combined Pedal Robot CC800 is perfectly prepared for synchronous operation with a VEHICO Steering Robot.
Technical data
Performance
100 cm/s
max. speed brake pedal
50 cm/s
max. speed gas pedal
800 N
max. force brake pedal
200 N
max. force gas pedal
200 mm
max. brake pedal travel
6.5 kg
weight
Further development of the CC800
Flex pedal robot system
Based on our CC800 combined brake and accelerator pedal robot and our extensive experience in driving robot applications, we have developed our latest pedal robot system: the Flex Series pedal robot.
Using state-of-the-art electronics and mechanics, we have created a unique system that sets new standards.
See for yourself!
Areas of application
Numerous areas of application possible
Due to the enormous flexibility, our pedal robots are used in a variety of in a wide range of different applications:
- Development and assessment trials for novel driver assistance systems
- Tyre Tests
- Real exhaust gas tests on road or roller dynamometer
- ... and much more
